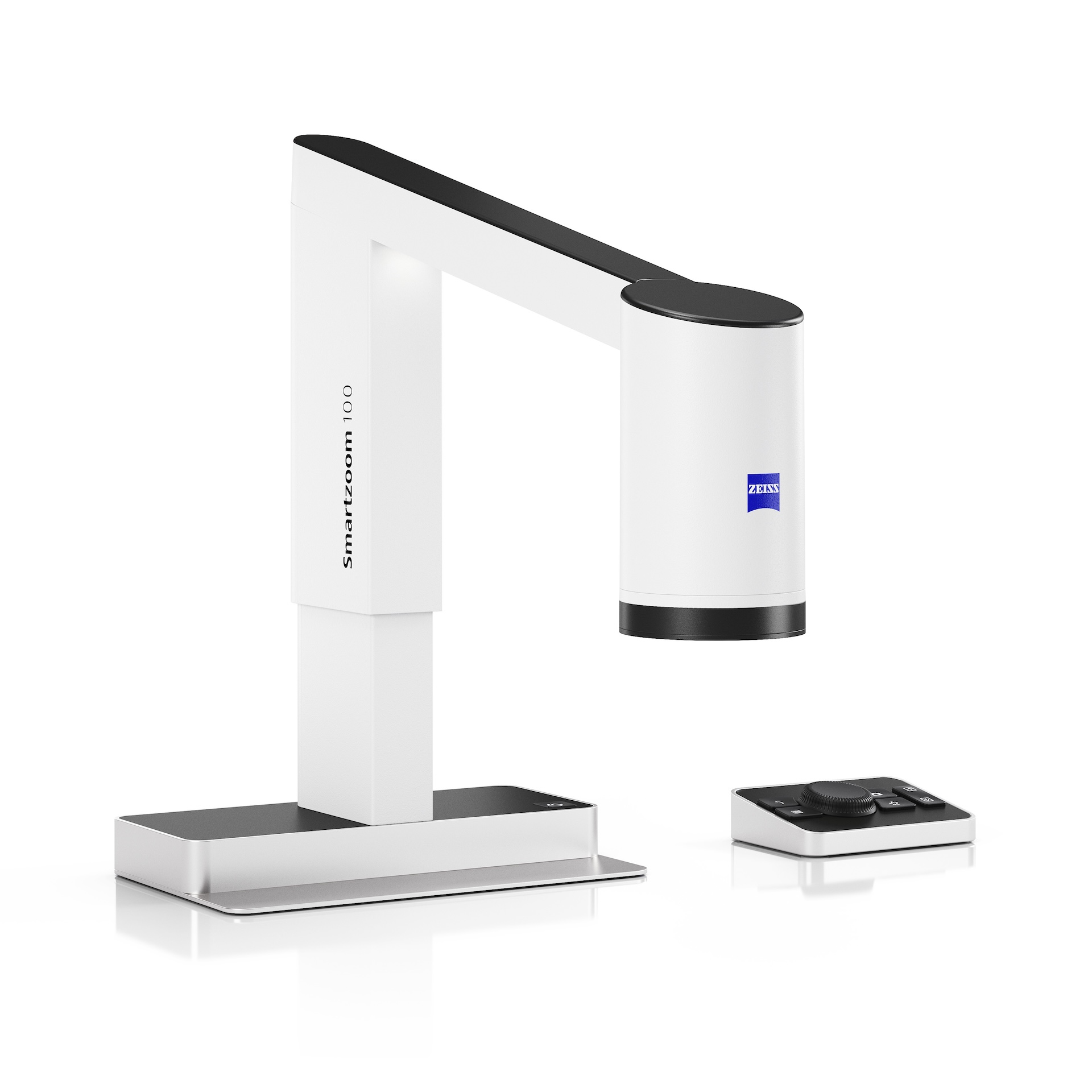

ZEISS Smartzoom 100
Zoom in. Check. Done.
Digital microscopes boost efficiency in optical inspection and facilitate collaborative inspection with multiple users. They reduce fatigue, improve ergonomics, and lighten the workload. The new solution from ZEISS delivers all of these benefits and more. ZEISS Smartzoom 100 comes with a user-friendly interface and is the perfect digital microscope for beginners and experts – ready for use from incoming goods inspection to laboratory and for all industries.

The ZEISS Smartzoom 100 is an advanced digital microscope designed to enhance efficiency in quality control, manufacturing, and industrial applications.
With automatic focusing, easy documentation, and seamless online integration, it optimizes optical inspections, reduces fatigue, and improves ergonomics.
Its intuitive design lightens the workload, making it an essential tool for industries that require accuracy and productivity. Whether inspecting microcomponents or ensuring product quality, the ZEISS Smartzoom 100 offers a versatile and efficient all-in-one solution.
ZEISS Smartzoom 100
Zoom in. Check. Done.

The new system stands for driving collaboration that is accessible to both novice and experienced optical microscopy users.

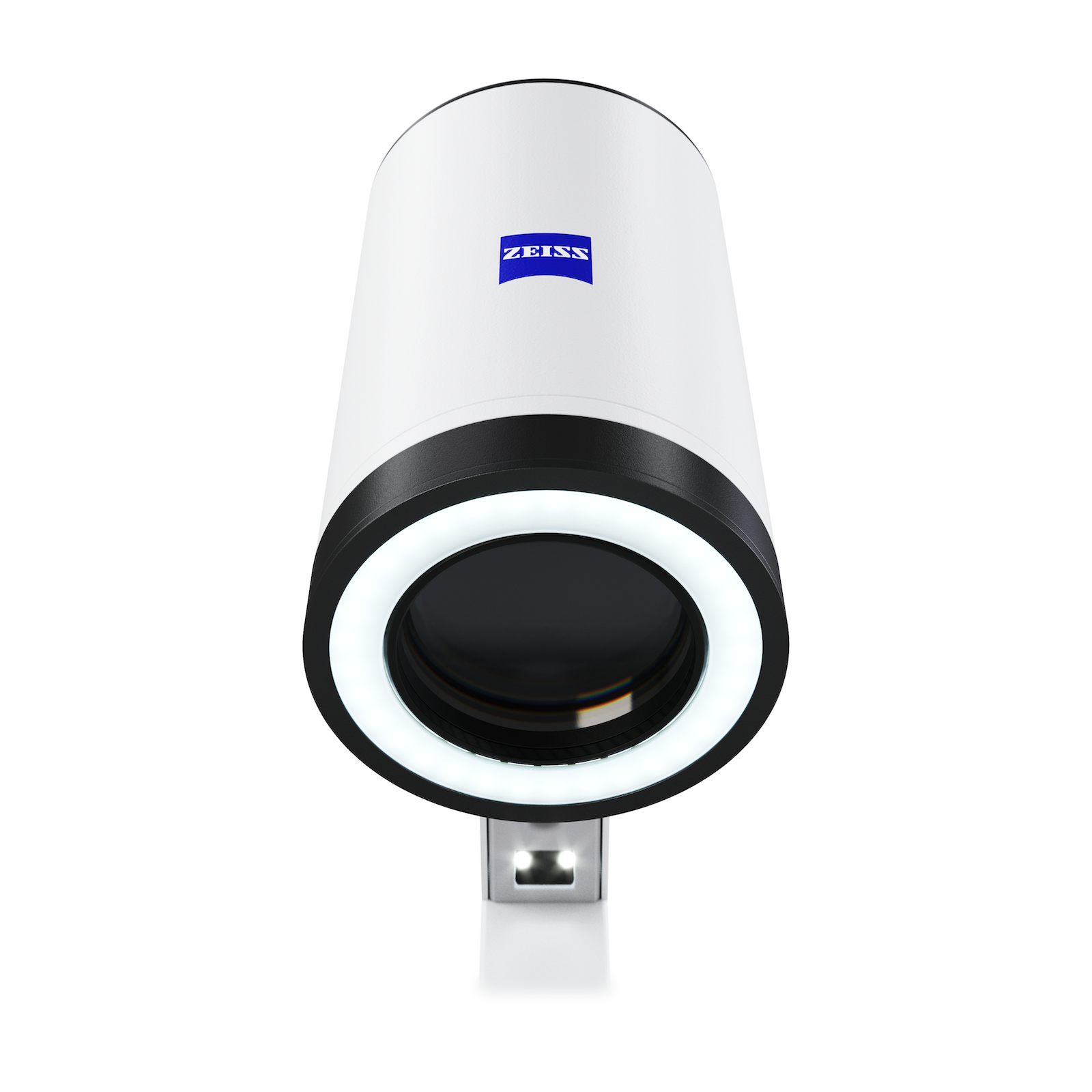

The ring light and objectives, equipped with a magnetic mount, enable efficient inspection and easy operation for any user.
The ring light provides even and bright illumination, minimizing shadows and highlighting details clearly. Combined with the flexible magnetic objectives, which allow for quick magnification adjustments, the system delivers optimal image quality for accurate analysis of parts.
This combination of high-quality lighting and flexible optics ensures precise inspection, making it especially crucial in quality control and manufacturing.
ZEISS Smartzoom 100
Zoom in. Check. Done.
It’s a modern, sleek application of digital technology for optical inspection.

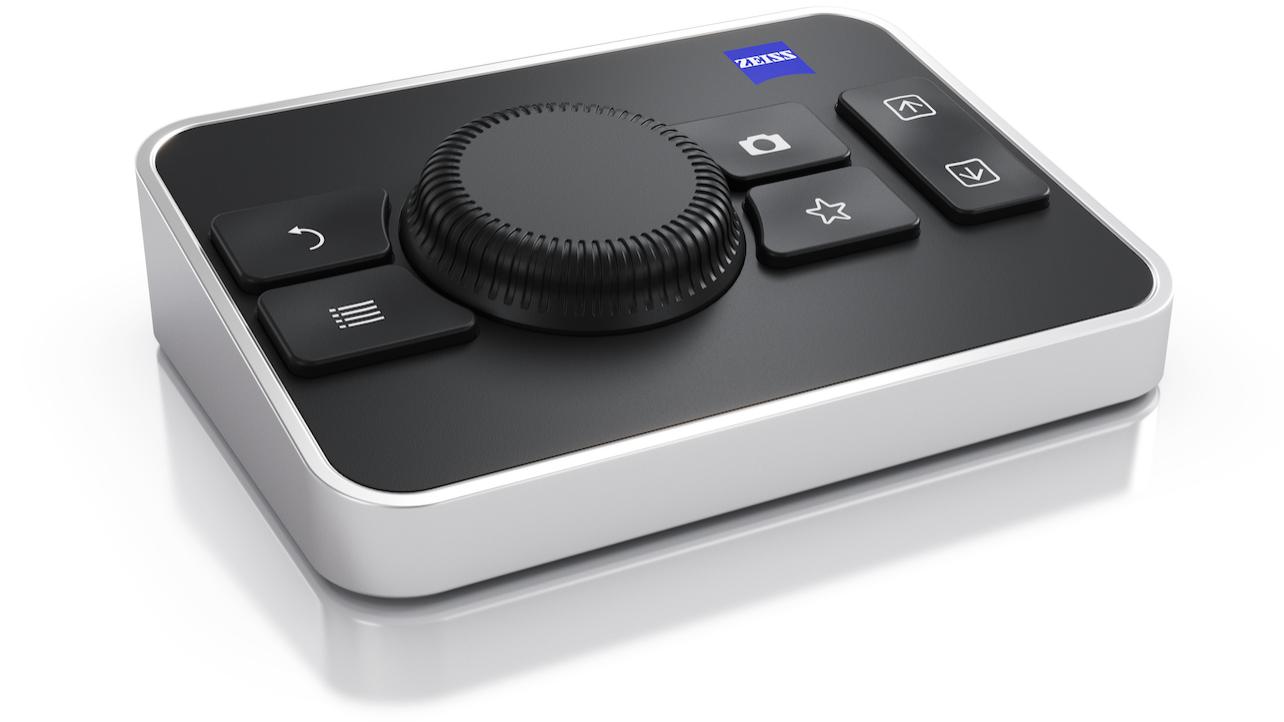

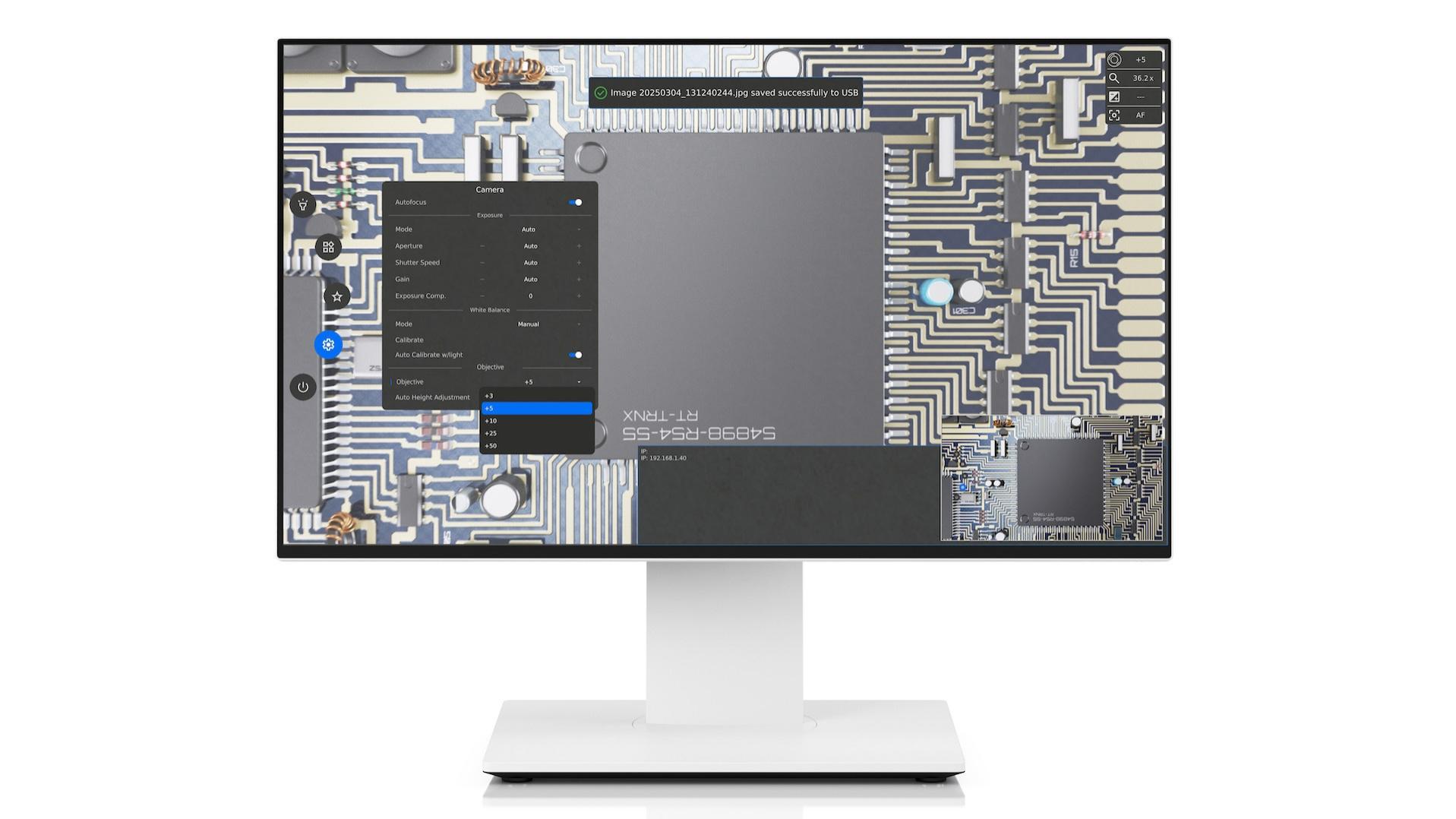

The solution provides a user-friendly and powerful platform for inspection and analysis. It allows easy control of settings such as magnification, lighting, and focus to ensure precise and efficient inspections.

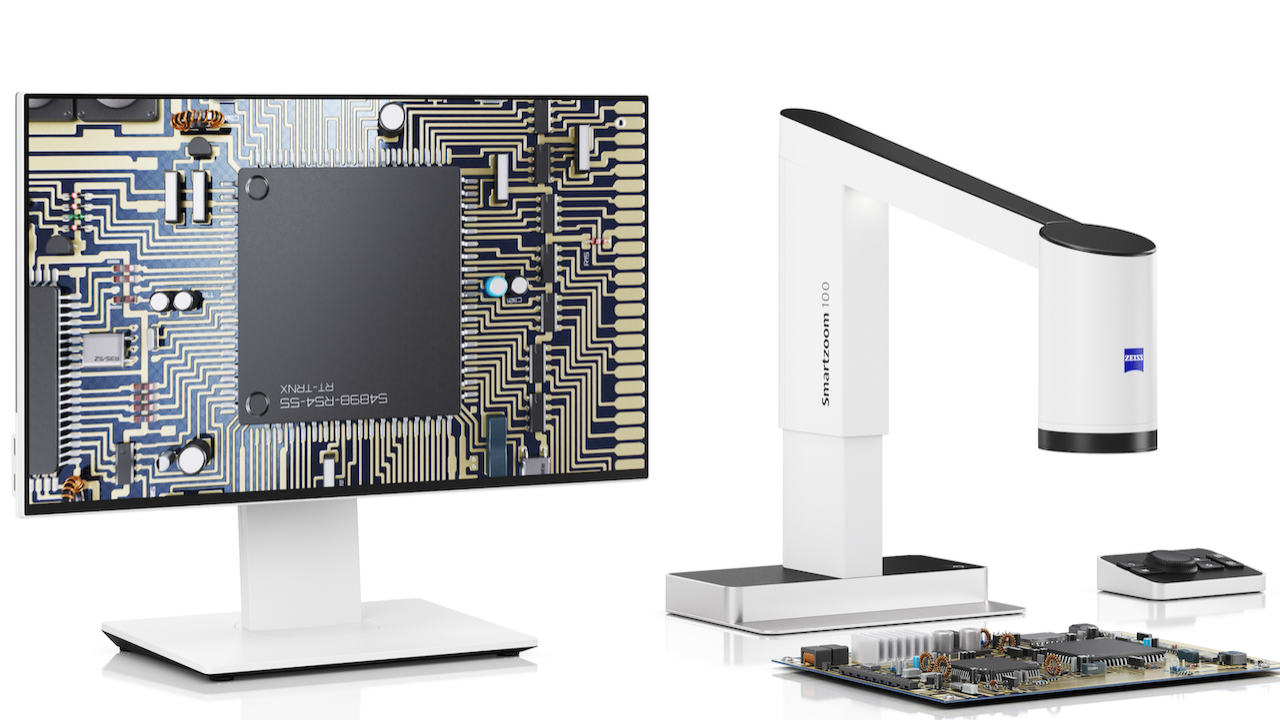

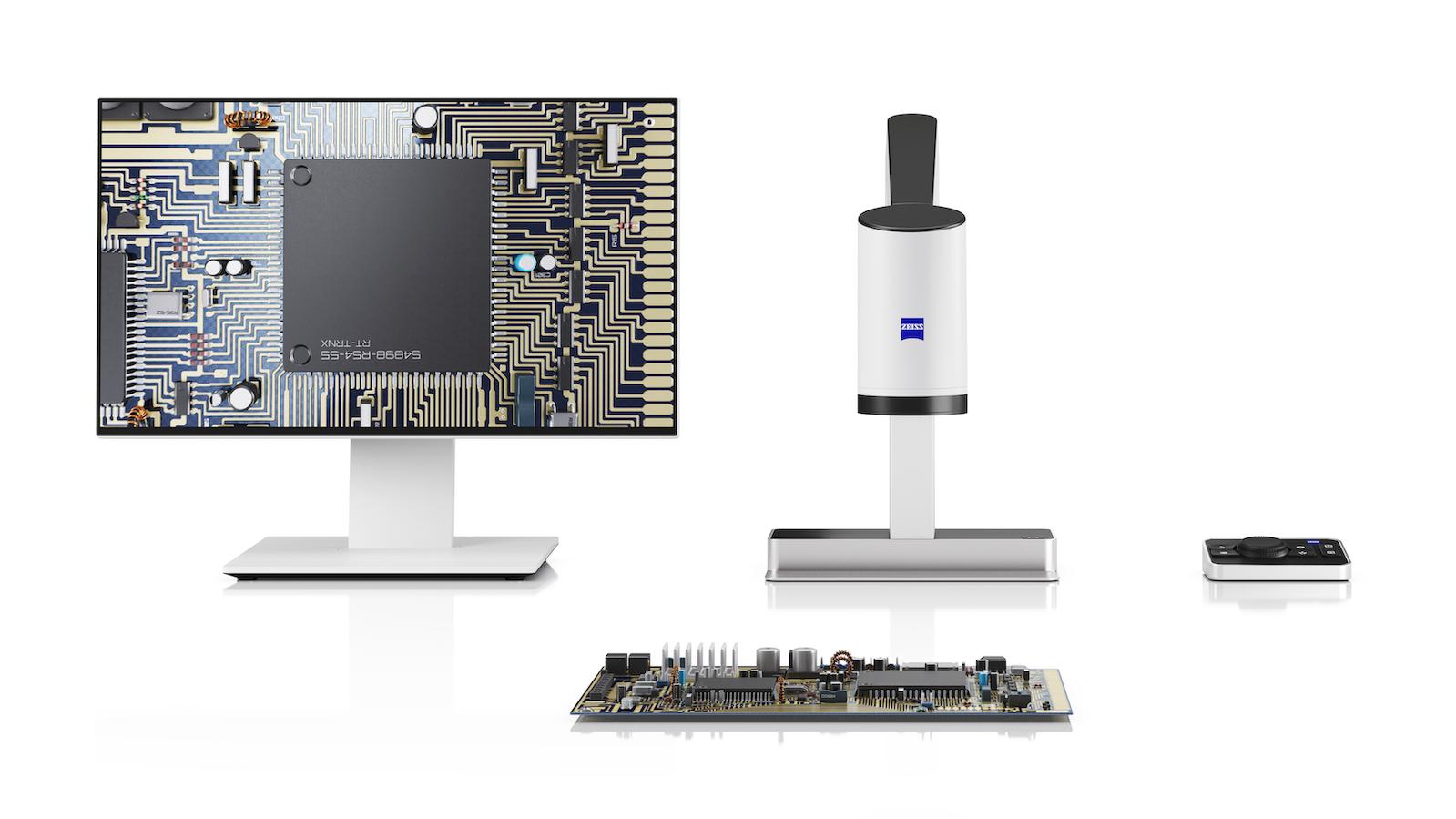

ZEISS Smartzoom 100 & Software

ZEISS Smartzoom 100 makes optical microscopy accessible to people without a background in microscopy. It reduces fatigue and offers greater flexibility for physical applications, as the user doesn't need to use eyepieces. The system also facilitates collaborative inspection by replacing eyepieces with a monitor, allowing single or multiple users to view the inspection.
Technical specifications
Dimensions and weight |
|
---|---|
Height: |
390 mm - 635 mm (15.35”-25”) |
Width: |
320 mm (12.60”) |
Depth: |
325 mm (12.80”) |
Working depth: |
370 mm (14.57”) |
Weight: |
10.8 kg (23.81 lbs) |
Camera specs |
|
Camera resolution: |
4K (3840x2160), 8.5MP @ 60/50/30Hz |
Frame rate: |
60 frames per second |
Optical zoom: |
25x |
Video output: |
HDMI |
Aspect ratio: |
16:9 |
Objective |
Magnification range |
Free working distance |
Field of view |
+3 |
1.6x - 40x |
330 mm (12.99”) |
16 mm - 353 mm (0.63” - 13.90”) |
+5 |
2.8x - 66x |
200 mm (7.87”) |
9.5 mm - 210 mm (0.37” - 8.27”) |
+10 |
5.4x - 130x |
78 mm (3.07”) |
4.8 mm - 86 mm (0.19” - 3.39”) |
+25 |
13.2x - 328x |
34 mm (1.34”) |
1.9 mm - 3.5 mm (0.07” – 0.14”) |
