Quality Assurance for Foundries

Solutions for every step of the casting production

Your partner for quality assurance of castings

Quality is essential in every step of manufacturing castings, including molding, machining, and assembly processes. Regardless of the casting technique employed - sand casting, die casting, or investment casting - quality remains a top priority across all methods. Advanced measuring technologies not only enhance these processes but also support the entire production chain, ensuring precision and excellence throughout.

Quality for every casting process

Covering multiple manufacturing processes

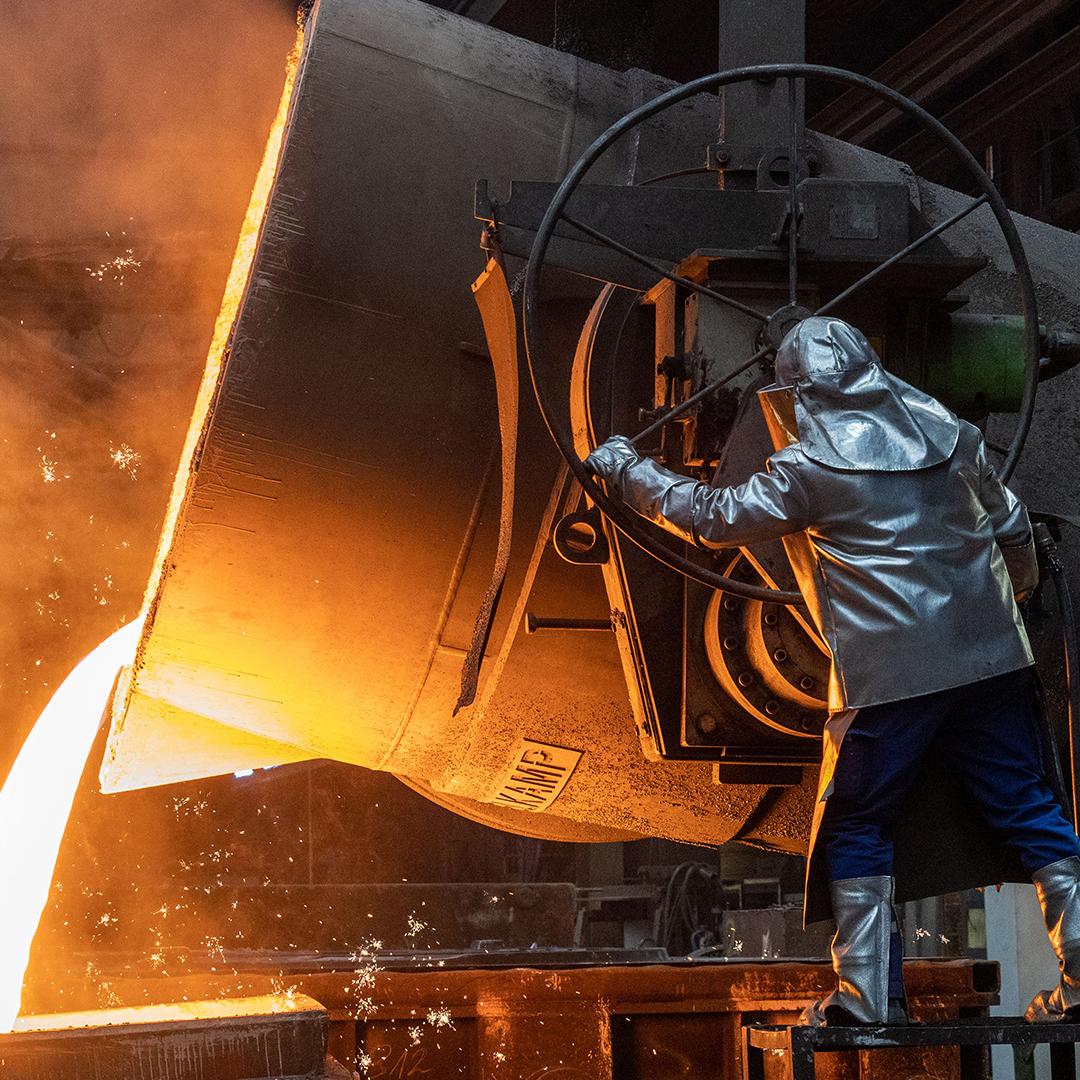

Sand casting

Individual parts up to very large sizes

The sand casting process can result in greater variances than other molding methods. Quality assurance is crucial to ensure castings meet standards for strength, durability, and dimensional accuracy. In safety-critical applications, strict quality control is essential for compliance with safety standards.

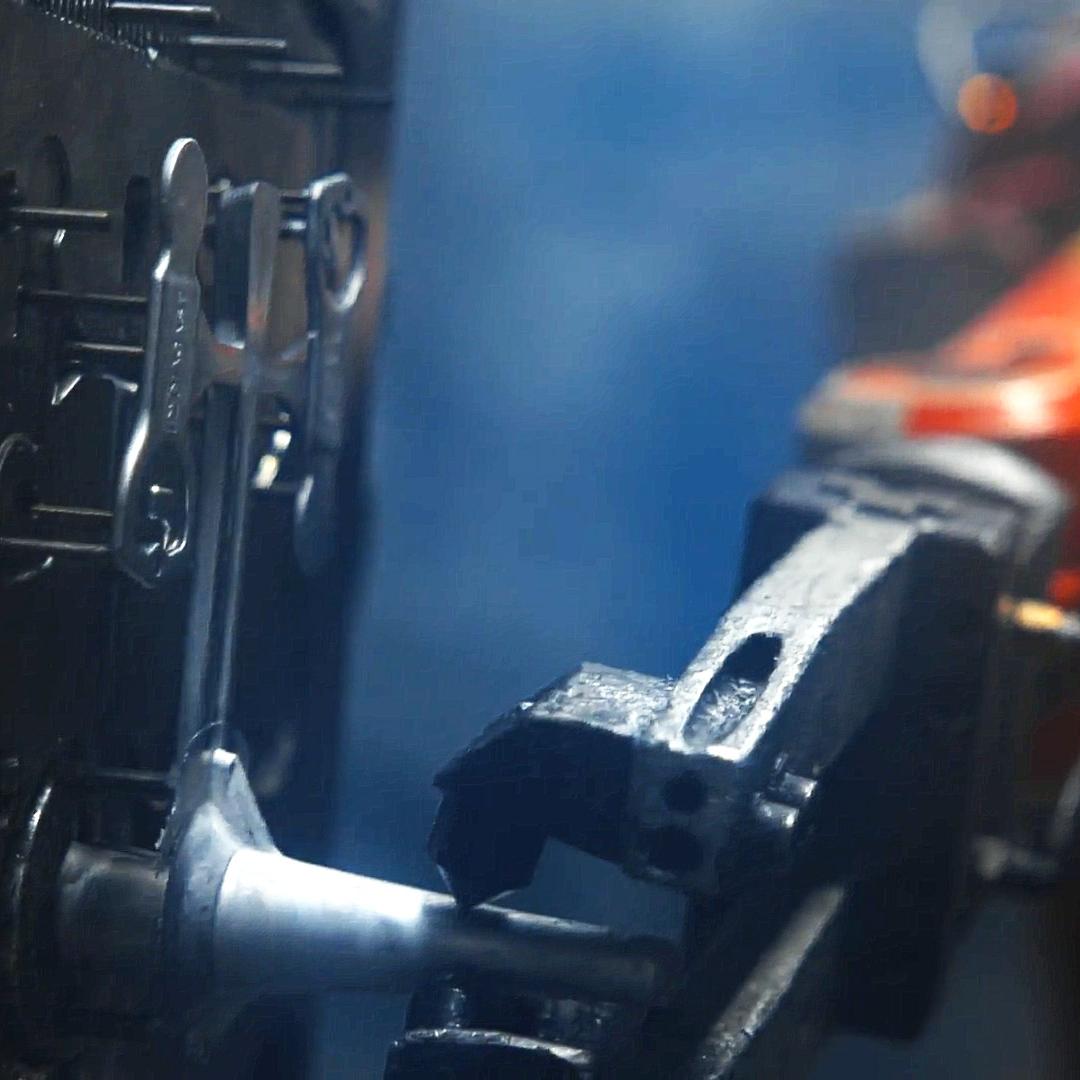

Die casting

Speed and efficiency combined

Die casting processes enable rapid mass production of components. Real-time quality controls are crucial for maintaining quality at high production rates. Common monitored defects include air inclusions, insufficient strength, and surface imperfections.

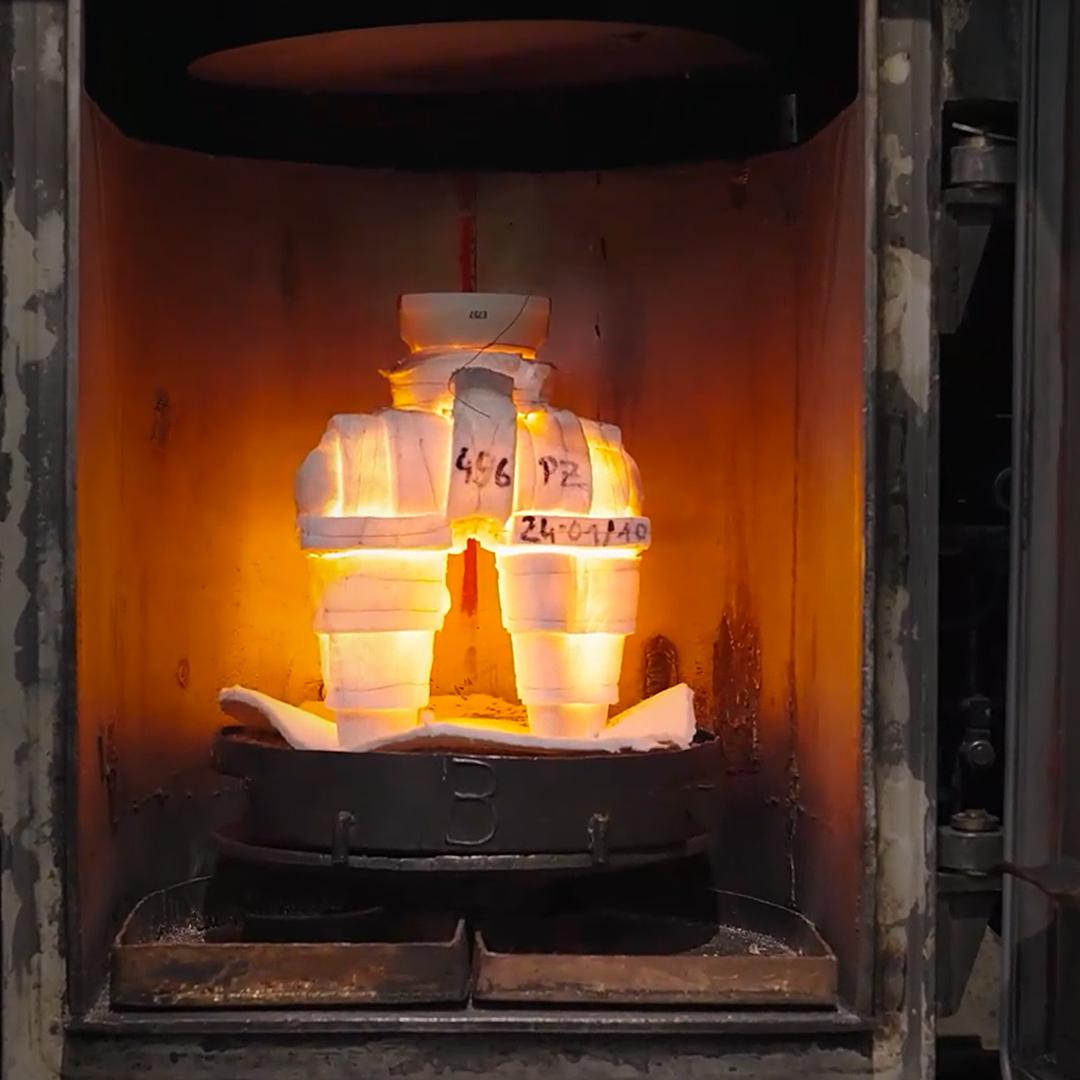

Investment casting

Maximum precision and attention to detail

Investment casting produces complex components with high dimensional accuracy. Regular tests and inspections are necessary to ensure parts meet tight tolerances. Surface defects, for example, are closely monitored as they can cause issues in further processing or applications.

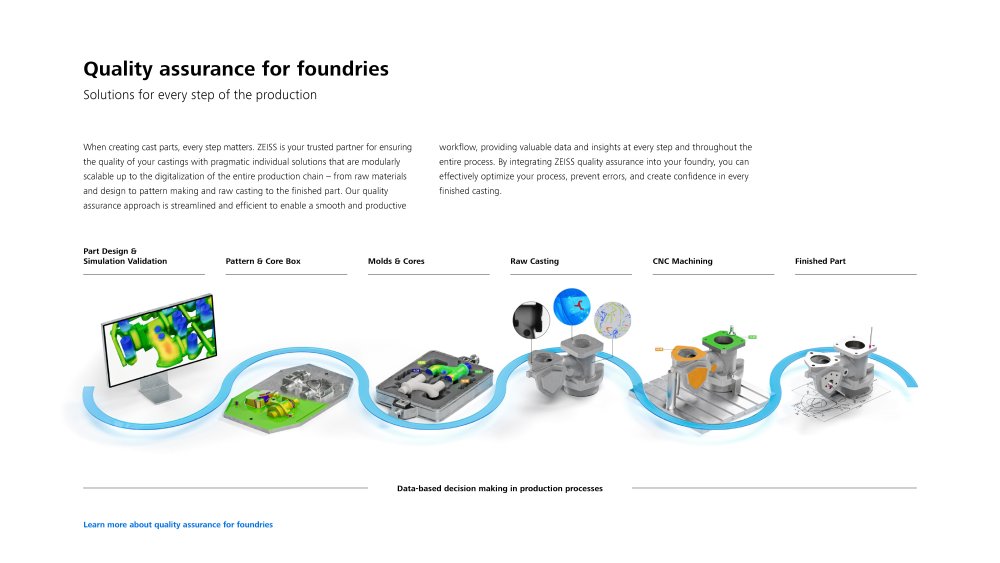

Quality gates and solutions for foundries

In the casting industry, every step plays a crucial role. From the initial design to pattern making, and from raw casting to the final product. ZEISS provides reliable support in ensuring the quality of castings through customized solutions that are modularly scalable. Enhance your production processes with innovative hardware systems to boost efficiency and create a seamless workflow. Meanwhile, leverage software solutions to gain valuable insights at every stage, utilizing essential data that guides you through the entire production journey.

Data-based decision making in mold, pattern and tool making

Data-based decision making in mold, pattern and tool making

With ZEISS software solutions

In modern manufacturing, ensuring precision and quality is essential for success. Therefore, castings must fulfil certain quality criteria. A key strategy to facilitate the creation of innovative designs is the reverse engineering of castings and entire pattern setups with 3D scan data.
This process can be enhanced by a central database that provides real-time visualization and quality reporting, making complex data more accessible and actionable. Additionally, by analyzing data from past projects, organizations can prevent errors and optimize their processes, ultimately driving greater efficiency and product excellence.
The measuring data of molds and cores enable a virtual assembly analysis of mold halves and cores. This serves for the inspection of parting surfaces regarding offset, fitting and form fit of mold halves and core clearance.

2D and 3D X-Ray Solutions for defect detection and checks of internal and external dimensions

2D and 3D X-Ray Solutions for defect detection and checks of internal and external dimensions

With ZEISS BOSELLO and ZEISS METROTOM

Defects such as blowholes, cracks, or inclusions can significantly impact the functionality and lifespan of parts. To ensure that castings meet the highest safety standards, internal defects should be checked in early stages.

CT technology enables the generation of precise, traceable 3D volumetric data, allowing for automated and even AI-driven defect detection. This non-destructive inspection method not only improves the reliability of identifying defects but also optimizes the inspection workflow. Moreover, 2D X-ray systems provide swift detection of defects, even in demanding environments, thereby reinforcing the effectiveness and efficiency of production processes.

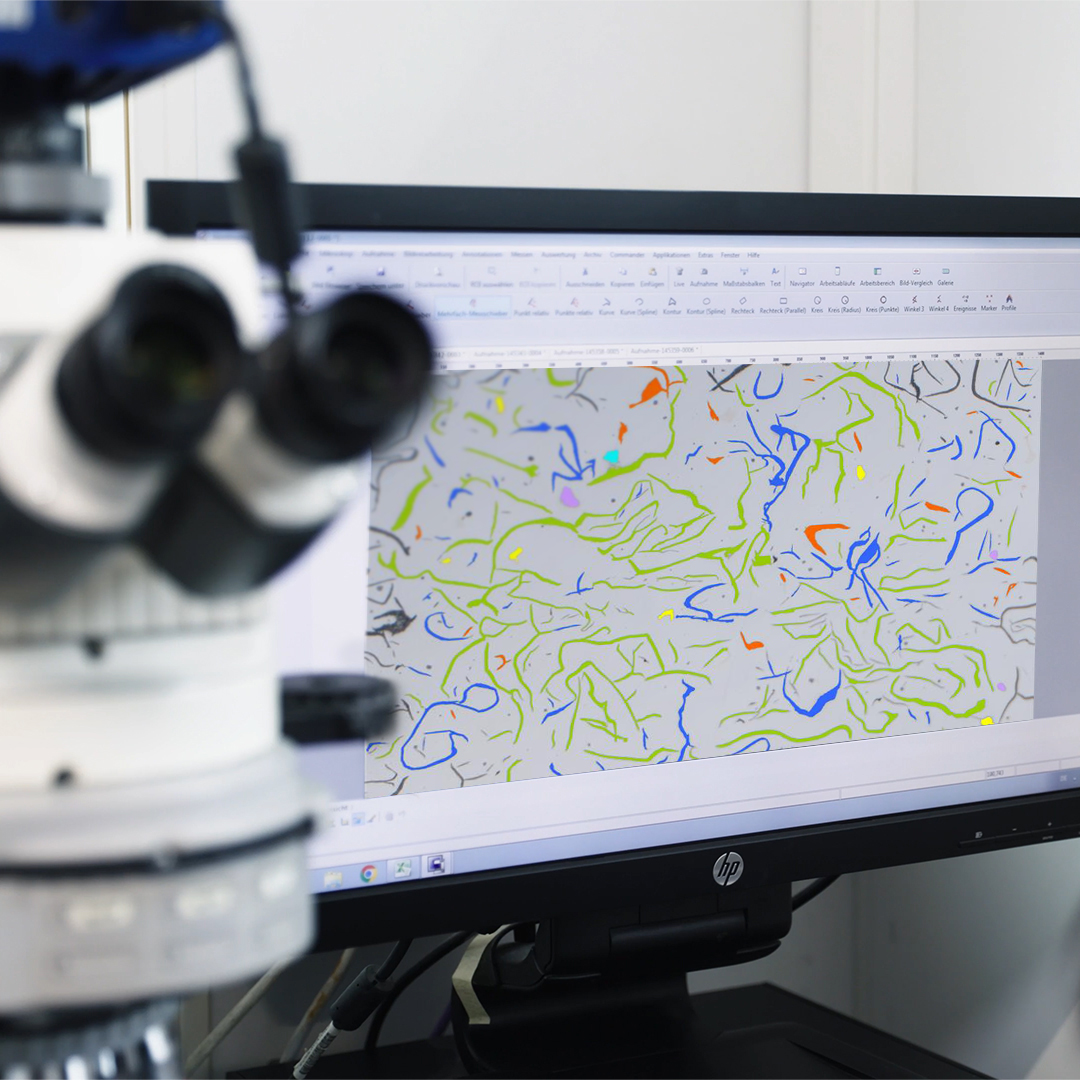

Automated material analysis using artificial intelligence

Automated material analysis using artificial intelligence

With industrial microscopy

Thanks to microstructural analysis, foundries can evaluate grain sizes, graphite precipitates, distributions, and non-metallic inclusions, enhancing the understanding of material properties and performance. With industrial microscopy solutions raw castings can this way be also checked for their grain size and shape, and layer thickness.

From the initial sample to series production

From the initial sample to series production

With optical metrology

Optical measurement techniques enable full-field inspection and digitalization of the shape and dimensions of castings, facilitating thorough evaluations during first article inspections and throughout series production.

With its back projection function, the ATOS sensor projects features such as isolines and punch marks straight from the software onto the real part. As a result, the conventional marking of heavy cast blanks is no longer needed. Additionally, efficient part alignment for CNC machining can be achieved.

Furthermore, optical metrology is used for shape and dimension control of patterns, core boxes, molds and cores to improve part quality and cost.

Quality control during series production

Quality control during series production

With multisensor metrology

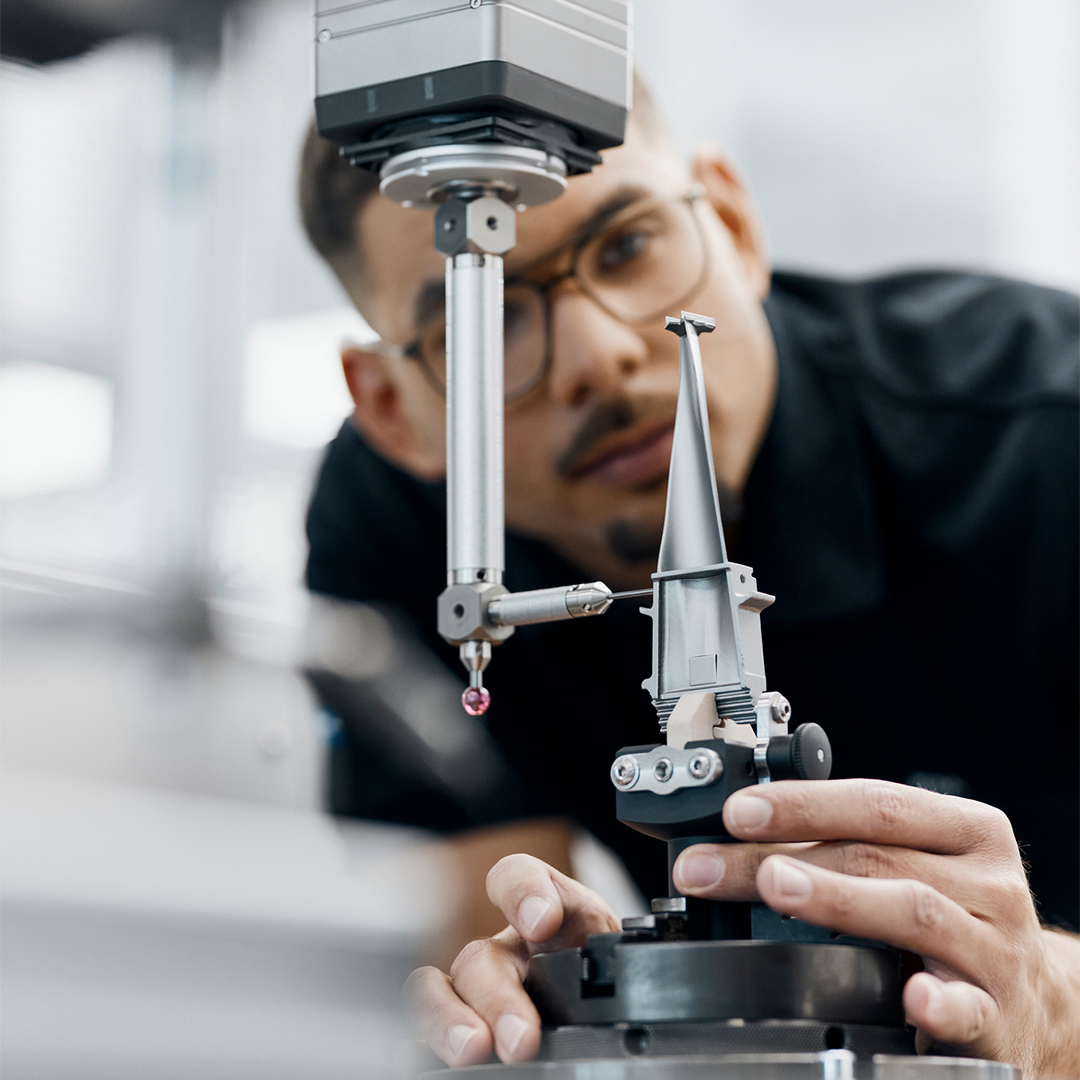

Once the part is finished, it is essential to assess its consistency and precision using coordinate measuring machines (CMMs). For critical dimensions, measurements can be performed concurrently with production, allowing for quality checks at the last step.

CMMs are also used in the manufacturing, maintenance and repair of molds and cores to ensure and improve their quality and lifetime.
